Spa, Jacuzzi & Olympic Pool Equipment
Cometepool manufactures spa, jacuzzi and Olympic pool equipment in-house on its ISO 9001 certified production line in Bornova, Izmir. The range spans VitalityPool massage systems, cobra waterfalls and water curtains, alongside competition equipment such as fixed and adjustable starting platforms, Seoul and Rome type lane separators and turning panels. Cometepool fabricates every item to your project drawings and dimensions, and exports to pool builders, mechanical contractors and dealers in more than 35 countries.
Spa, jacuzzi and Olympic pool equipment is not a single product but a full family covering the massage, water-effect and competition hardware of a wet area. Cometepool fabricates the stainless items of that family in house at its ISO 9001 certified plant in Bornova, Izmir, in AISI 304 and AISI 316 stainless steel. Most stainless groups in the catalogue are listed in both grades; the VitalityPool system is AISI 316 only and lane separators are made of plastic. The grade is fixed by the project specification. Sheet, tube and profile are cut, formed, welded and finished on the same line, and a matt or polished surface can be specified across the entire waterfall and massage range.
On the spa and jacuzzi side the VitalityPool bed and bench massage system sits at the centre of the range. It is built to the dimensions of each pool, entirely in AISI 316 stainless steel, and typically runs at 38 °C. For shoulder massage, cobra waterfalls are produced in six sizes from a 350×350 mm mini unit up to 900×600 mm, together with slim variants; the water inlet is Ø 50 mm on the mini and Ø 63 mm on the rest. Lux waterfalls are made in 1,000×400, 1,000×500 and 1,000×600 mm, calling for 12, 20 and 30 m³/h pumps respectively. Eco (swan), standard, wall-mounted and in-wall models follow, alongside flat, dolphin and S-type custom designs. For a weeping-wall effect, water curtains are listed in six widths from 0.30 m to 3.00 m, with the length adjustable to the project.
Air equipment completes the massage package. The air bed system comes as a full or half installation, requiring a 2.2 and a 1.1 blower respectively. Air floor systems are made as Ø 345 mm round, 300×300, 500×500 and 750×750 mm square and 520×170 mm rectangular units, driven by a 1.1 kW blower. Jacuzzi air blowing nozzles and 1 1/2" air regulation nozzles are supplied as complementary items. Wall massage nozzles come as a short type (130×120×85 mm) and a long type (410×100×165 mm), both with a 2" connection at 20 m³/h, in the same stainless grades. Pump, light and blower functions are switched from an electronic control button with 220 V AC input and IPX5 protection, running continuously or on a 7-minute timer.
The same discipline is applied to competition hardware. Fixed and adjustable starting platforms are built at 400 mm and 700 mm height, on a stainless sheet and tube body with a non-slip polyester top. Lane separators are offered in Seoul and Rome models at 25 m and 50 m, and separator storage trolleys at 1,200 mm and 1,800 mm. Backstroke turn indicator and false start signal poles are made from Ø 43 mm stainless tube for 21 m pools and Ø 48 mm for 25 m pools, supplied complete with rope, flags/balls and poles. Turning panels come in L = 2 m and L = 2.50 m with twin and quadruple panel supports; anchors for poles and panels are a separate item. The wheeled referee chair is built from Ø 43 mm stainless tube with a plastic seat. All of this is made for pool builders, mechanical contractors and dealers — Cometepool is built on more than 20 years of hands-on experience in the sector and exports to more than 35 countries.
Manufactured in-house by Cometepool (3T Havuzculuk) in Izmir, Türkiye — ISO 9001 certified production.
MODELS AND TYPES
| VitalityPool Bed and Bench Massage System (VitalityPool) | Seated and standing massage system. Built per project to the pool's dimensions in AISI 316 stainless, typically running at 38 °C. |
| Cobra Type Waterfalls (Mini, Economy, Standard, Slim) (KTS001–KTS006) | Delivers a shoulder water massage in spa pools. Six sizes from 350×350 to 900×600 mm, AISI 304 and 316, matt or polished. |
| Lux Type Waterfalls (LTS001–LTS003) | 1,000×400, 1,000×500 and 1,000×600 mm. Ø 63 mm connection, driven by a 12/20/30 m³/h pump. |
| Custom Type Waterfalls (Flat, Dolphin, S Type) (OTS001–OTS004) | Design-led waterfall models. Flat type at 500×600 and 500×800 mm, Ø 63 mm water inlet. |
| Eco (Swan) and Standard Waterfalls (EKT01–EKT02 / STS001–STS003) | Classic series with different water throw profiles. 1,000 mm wide; eco in 400 and 600 mm, standard in 400, 500 and 600 mm. |
| Wall-Mounted and In-Wall Waterfalls (DTS001–DTS003) | Wall type at 137×300 and 137×500 mm, in-wall at 65×500 mm. Ø 50 mm connection, 12–20 m³/h pump. |
| Water Curtains — Wall Type (DTSP001–DTSP006) | Six widths from 0.30 m to 3.00 m for a weeping-wall effect; length adjustable to the project. |
| Air Bed System (Full / Half) (PHMY01 / PHMY04) | The full system needs a 2.2 blower, the half system a 1.1 blower. Made from AISI 304 and 316 sheet. |
| Air Floor Systems (Round, Square, Rectangular) (HTS01–HTS05) | Ø 345 mm round; 300×300, 500×500, 750×750 mm square; 520×170 mm rectangular. 1.1 kW blower. |
| Jacuzzi Air Blowing and Air Regulation Nozzles (JHUN / JHAN) | Complementary nozzles for jacuzzi pools; the air regulation nozzle has a 1 1/2" connection. |

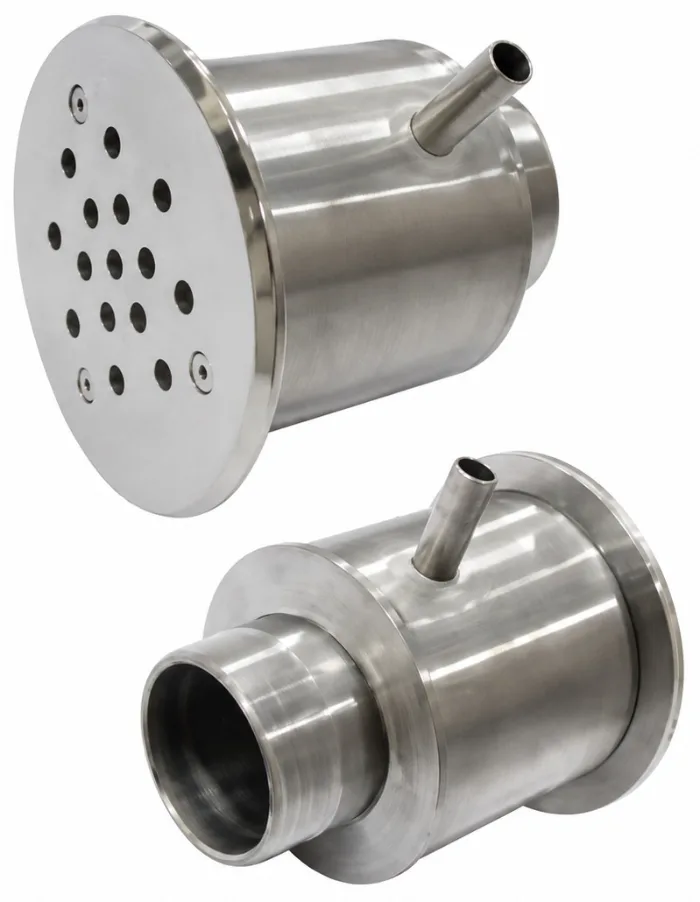

| Wall Massage Nozzles (Short / Long Type) (DMN01 / DMN02) | 2" connection, 20 m³/h pump. Short type 130×120×85 mm at 1.15 kg, long type 410×100×165 mm at 2.70 kg. Socket and nipple options available. |

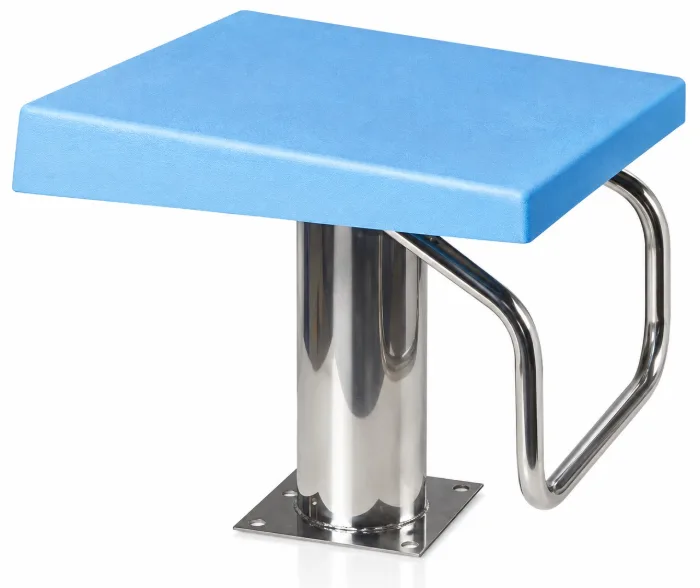

| Fixed Starting Platforms (SAP001–SAP004) | 400 mm and 700 mm heights. AISI 304/316 stainless sheet and tube body with a non-slip polyester top. |
| Adjustable Starting Platforms (AAP001–AAP004) | Same heights and materials as the fixed model, with an adjustable top platform. |
| Lane Separators (Seoul / Rome Model) (KS001–KS006) | Made from plastic; 25 m and 50 m lengths. Separator floats and frames available separately. |
| Separator Storage Trolleys (STA01–STA04) | 1,200 mm and 1,800 mm lengths, in AISI 304 and 316. |
| Backstroke Turn Indicator and False Start Signal Poles (GDD01–GDD04 / YCD01–YCD04) | 12.5 m and 25 m sets. Ø 43 mm tube for 21 m pools, Ø 48 mm for 25 m pools; rope, flags/balls and poles included, anchors excluded. |
| Turning Panels and Panel Supports (ODON01–ODON04) | L = 2 m and L = 2.50 m panels, with twin and quadruple supports. Anchors excluded. |
| Wheeled Referee Chair (HKS01 / HKS02) | Built from Ø 43 mm stainless tube with a plastic seat. Available in AISI 304 and 316. |
| Olympic Complementary Accessories (OSG01 / OSY01–OSY03 / PDA01–PDA04 / ODC01 / SUAK01) | Separator tensioners (ratchet and standard), tensioner spring, straight hook, pin and piston straight anchors, bolted anchor, fin-system inclined anchor and waterline hanging hook. |
| Jacuzzi Electronic Control Button and System (VTP003–VTP012) | Single- and three-function control options; 220 V AC input, IPX5. With AISI 304/316 cover plate and stainless base housing accessories. |
| SPA Type Housed 9 Power LED Luminaires (KSPA04-CW / KSPA13) | Luminaire with a first-grade black plastic housing for spa projects. Single-colour and full RGB options; 12 V, IP68, 50,000 hours. |
TECHNICAL SPECIFICATIONS
| Product group | Spa, jacuzzi & Olympic pool equipment |
| Massage systems | VitalityPool series |
| Water features | Cobra waterfalls, water curtains |
| Starting platforms | Fixed and adjustable types |
| Lane separators | Seoul and Rome type |
| Turning equipment | Turning panels |
| Production | ISO 9001 certified line, Izmir, Türkiye |
| Custom fabrication | To project drawings and dimensions |
| Material grade | AISI 304 and AISI 316 stainless steel (lane separators are plastic) |
| Surface finish | Matt or polished finish |
| VitalityPool massage system | Project-based custom fabrication, entirely AISI 316 stainless |
| VitalityPool operating temperature | Approximately 38 °C |
| Cobra waterfall sizes | 350×350 · 500×600 · 800×400 · 900×600 mm; slim 500×600 and 500×800 mm |
| Cobra waterfall water inlet | Ø 50 mm on KTS001, Ø 63 mm on the other models |
| Lux waterfall | 1,000×400 / 500 / 600 mm; Ø 63 mm connection; 12 / 20 / 30 m³/h pump; 29 / 34 / 39 kg |
| Custom-design waterfalls | Flat (500×600 and 500×800 mm), dolphin type and S type; Ø 63 mm water inlet |
| Eco and standard waterfalls | Eco (swan) 1,000×400 and 1,000×600 mm; standard 1,000×400 / 500 / 600 mm |
| Wall-mounted and in-wall waterfalls | Wall type 137×300 and 137×500 mm; in-wall 65×500 mm; Ø 50 mm connection, 12–20 m³/h pump |
| Water curtain widths | 0.30 · 0.50 · 1.00 · 1.50 · 2.00 · 3.00 m (length adjustable to the project) |
| Air bed system | Full system 2.2 blower; half system 1.1 blower |
| Air floor systems | Round Ø 345 mm; square 300×300, 500×500, 750×750 mm; rectangular 520×170 mm; 1.1 kW blower |
| Jacuzzi air regulation nozzle | 1 1/2" connection, AISI 304 or 316 |
| Wall massage nozzles | 2" connection, 20 m³/h pump; short type 130×120×85 mm / 1.15 kg, long type 410×100×165 mm / 2.70 kg |
| Jacuzzi electronic control | 220 V AC input, IPX5; pump, light and blower, continuous or 7-minute timed operation |
| SPA type housed luminaire | 9 Power LED, 12 V, IP68, 50,000 hours; black plastic housing |
| Starting platform heights | 400 mm and 700 mm; fixed and adjustable types |
| Starting platform top surface | Non-slip polyester top platform on stainless sheet and tube body |
| Separator storage trolleys | 1,200 mm and 1,800 mm lengths, AISI 304 or 316 |
| Indicator and signal poles | Ø 43 mm stainless tube for 21 m pools, Ø 48 mm for 25 m pools; rope, flags/balls and poles included, anchors excluded |
| Turning panels | L = 2 m and L = 2.50 m; twin and quadruple panel supports; anchors excluded |
| Referee chair | Ø 43 mm stainless tube, plastic seat, wheeled |
| Separator and anchoring accessories | Ratchet and standard separator tensioners, tensioner spring, straight hook, pin and piston straight anchors, bolted anchor, fin-system inclined anchor, waterline hanging hook |
APPLICATION AREAS

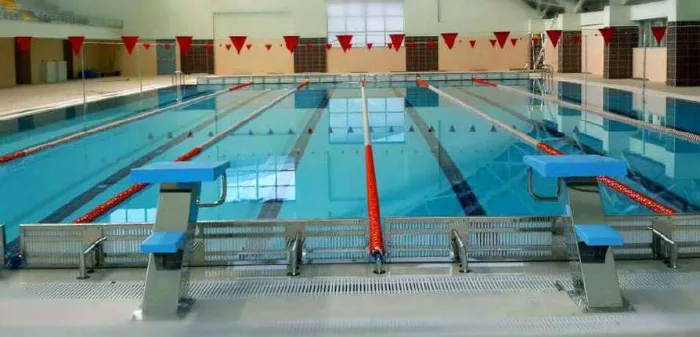

- Olympic and semi-Olympic competition pools
- Municipal and university aquatic centres
- Spa and jacuzzi pools in hotel and resort wellness centres. The VitalityPool bed and bench system, air bed and air floor systems are combined to extend the time guests spend in the wet area.
- Massage and water-feature installations in villa and residential projects. Cobra, lux, eco, standard and wall-type waterfalls and wall massage nozzles are selected to suit the pump flow of the pool's hydraulics.
- Thermal and hydrotherapy facilities. The AISI 316 stainless VitalityPool system operates at around 38 °C in regeneration pools.
- Landscape and courtyard schemes needing an architectural water element. Water curtains from 0.30 m to 3.00 m wide create a weeping-wall effect, with the length adjusted to the project.
- Equipment supply for mechanical contractors. Waterfall, massage, jacuzzi nozzle and Olympic accessory items can be consolidated into a single shipment for pool builders and dealers.
FREQUENTLY ASKED QUESTIONS
Does Cometepool manufacture starting platforms and lane separators for competition pools?+
Yes. Fixed and adjustable starting platforms and turning panels are produced in-house on Cometepool's ISO 9001 certified line in Izmir, sized to your project drawings. Seoul and Rome type lane separators are supplied in 25 m and 50 m standard lengths.
Can spa and jacuzzi equipment such as cobra waterfalls and water curtains be made to custom dimensions?+
Yes — custom fabrication to project drawings and dimensions is Cometepool's core capability. VitalityPool massage systems, cobra waterfalls and water curtains are all built to the measurements your project requires.
Does Cometepool export this equipment, and how can I see the full range?+
Yes — Cometepool exports to more than 35 countries; dealership terms are available on request. The full range is listed in the catalog at cometepool.com/catalogs/catalog-en.pdf.
Should I specify AISI 304 or AISI 316?+
Almost every stainless spa, jacuzzi and Olympic item in our catalogue is listed in both AISI 304 and AISI 316 — waterfalls, air floor systems, massage nozzles, starting platforms and turning panels all come in both. The VitalityPool bed and bench system is AISI 316 only, and the lane separators (KS001–KS006) are a plastic product with no stainless grade; most of the Olympic accessories are listed in AISI 304 only. The right grade is set by your specification and water conditions, and we can quote both at tender stage.
How do I take dimensions for waterfall and massage equipment?+
For standard models you simply pick a size from the catalogue: cobra waterfalls from 350×350 mm to 900×600 mm, lux waterfalls at 1,000×400/500/600 mm, wall type at 137×300 and 137×500 mm. For custom work we need the pool wall section, the water level and the level at which the feed pipe arrives. The most reliable route is to send the pool plan and section drawing — VitalityPool units and water curtains are dimensioned per project in any case.
Can this equipment be retrofitted to an existing pool?+
Items such as waterfalls, massage nozzles and air floor systems need a pipework connection — cobra waterfalls use Ø 50 or Ø 63 mm and wall massage nozzles a 2" connection, and the feed line has to reach the pool. Retrofits are therefore normally done with the pool drained, as part of a refurbishment. On the Olympic side, starting platforms, indicator poles and turning panels sit on anchors; if the existing pool has none, work on the deck concrete is required.
Do you select the pump and blower?+
The catalogue states the flow or blower rating each item needs: lux waterfalls 12, 20 and 30 m³/h, wall massage nozzles 20 m³/h, the full air bed system a 2.2 blower and the half system a 1.1 blower, air floor systems a 1.1 kW blower. You can size the plant room from those figures — and if several items share one line, let us review the combined flow with you.
Matt or polished — and how is it maintained?+
The whole waterfall and massage range can be produced with a matt or a polished finish. As the catalogue notes, polished surfaces need frequent cleaning with suitable products to keep their appearance; matt hides marks and fingerprints better, which is why busy facilities usually choose it. In both cases, avoid chloride-based or abrasive cleaners.
Do you manufacture to a specific project design?+
Yes — custom fabrication is the basis of this family. The VitalityPool bed and bench system is built to the dimensions of your pool, water curtain lengths are adjusted to the project, and the custom waterfall range already includes flat, dolphin and S-type designs. For anything outside the standard sizes, send us the drawing and our technical team will assess manufacturability and come back to you.
Who is responsible for installation?+
Cometepool works as the manufacturer; site installation is normally carried out by the pool builder or the mechanical contractor. Products ship ready to install — bolts and coach screws are included with cobra and lux waterfalls, for instance. Anchors for starting platforms, indicator poles and turning panels, however, are a separate item and must be specified with the order.
What is and is not included in the indicator pole and separator sets?+
Backstroke turn indicator poles and false start signal poles are supplied complete with rope, flags/balls and poles; anchors are excluded. Ø 43 mm stainless tube is used for 21 m pools and Ø 48 mm for 25 m pools. Lane separators are supplied as Seoul and Rome models in 25 m and 50 m lengths; separator floats and frames, tensioners, tensioner springs and hooks are separate items.
Send your project drawings to info@cometepool.com or reach us on WhatsApp at +90 533 895 25 50 for a quotation.
