Ornamental Fountain Nozzle Systems
Cometepool manufactures ornamental fountain nozzle systems in-house on its ISO 9001 certified production line in Bornova, Izmir, and exports to more than 35 countries. Finger jet, cascade geyser, fan and inverted umbrella nozzles are machined to the project drawing and dimensions, with bronze or chrome-plated finishes to suit the architectural concept.
Cometepool (3T Havuzculuk ve Mekanik Ltd. Şti.) offers a complete water-effect package rather than a single item: finger jets, cascade geysers, concentric-tube foam nozzles, volcano nozzles, fan and mist nozzles, chrome water bells, monumental sphere and globe fountains, and lit floating fountain units. Bodies are produced in bronze or chrome-plated finish, so the hardware can follow the warm or cool metal tone the architect has specified. Founded on more than 20 years of hands-on experience in the sector, the company exports to more than 35 countries.
Finger jets are the workhorse of ornamental pools and give a straight, clean stream. Because we machine them ourselves, they come with a wide-angle swivel joint, which means the throw direction can still be corrected on site after the nozzle is set in the basin. The newer series adds self-valved bodies, so each jet can be balanced individually without running a separate valve manifold in the plant room. Thread sizes run 1/4", 1/2", 3/4", 1", 1 1/2" and 2", with long-body versions in 1" and 1 1/2". Cascade geysers produce the full, aerated white column that reads well from a distance; their articulated joint lets the spray angle be set, and five body sizes from 50T to 130T cover 1" to 3" connections.
Effect selection is what gives a scheme its character. Concentric-tube foam nozzles and stainless foam nozzles (35-10E, 55-10E, 55-15E, 75-20E) deliver a high-volume white plume even at shallow water depth: 35-10E works at 3.10-9.60 m³/h, 55-15E at 6-23 m³/h and 75-20E at 14-44 m³/h, across a 0.25-4.00 m water level range. Volcano nozzles raise a conical dome of water, and the 2" multi-jet version concentrates 19 individual jets in one body. Fan nozzles open a flat sheet, inverted umbrella nozzles form a downward bell, rotating nozzles trace a moving pattern, and mist nozzles add an evaporative cooling layer that works well in hot climates. Chrome water bells in 30, 45 and 60 cm diameters run at 3.00-5.00 m³/h and produce a closed, symmetrical film.
For civic and monumental work, sphere fountains are built from 1,500 mm up to 3,000 mm diameter with up to 186 arms, and globe-figure fountains from 690 mm up to 2,200 mm diameter. Floating fountain systems for ponds and lakes ship with 8 plastic light fittings in single-colour, RGB or full RGB. The stainless jumping jet nozzle throws 4 to 6 m depending on the project and is RGB lit. A separate plastic series - foam, jetted volcano, umbrella and mini volcano nozzles - covers budget-driven schemes. Because we also manufacture the lighting, waterfalls, gratings and plant-room equipment around the feature, pool contractors, landscape and mechanical contracting firms and dealers can source nozzle groups direct from the manufacturer and quote them together with the rest of the project list.
Manufactured in-house by Cometepool (3T Havuzculuk) in Izmir, Türkiye — ISO 9001 certified production.
MODELS AND TYPES

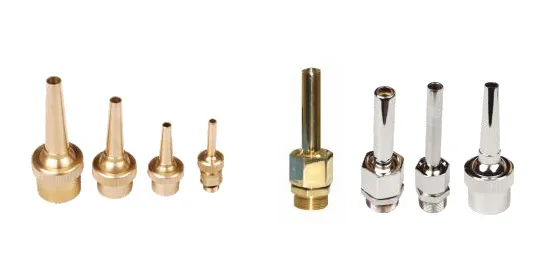

| Finger Jet Nozzles (PPF01–PPF11 / PPF01-K–PPF11-K) | Straight-throw jets with a wide-angle swivel joint; 1/4" (self-valved only), 1/2", 3/4", 1", 1 1/2" and 2", plus 1"–1 1/2" long-body and self-valved versions. Bronze or chrome-plated. |
| Cascade Geysers (F0001–F0005 / F0001-K–F0005-K) | Aerated white column with an articulated joint and adjustable spray angle: 50T 1", 70T 1 1/2", 90T 2", 110T 2 1/2", 130T 3". |
| Concentric-Tube Foam Nozzle (KFN01 / KFN02 (+ -K)) | 1" and 2" sizes producing a full white foam effect; bronze or chrome-plated. |
| Rotating Nozzle (DFN01 (+ -K)) | 1" rotating body that traces a moving water pattern; bronze or chrome-plated. |
| Inverted Umbrella Nozzle (TFN01 / TFN02 (+ -K)) | 1" and 2" nozzles forming a downward bell-shaped film of water; bronze or chrome-plated. |
| Fan Nozzle (YFN01 / YFN02 (+ -K)) | 1" and 2" nozzles that spread a flat sheet of water; bronze or chrome-plated. |
| Hand-Type Finger Jet (ETP001 (+ -K)) | 1" hand-type body; bronze or chrome-plated. |
| Mist Nozzle (FL004 (+ -K)) | 1" nozzle producing an evaporative cooling mist; bronze or chrome-plated. |

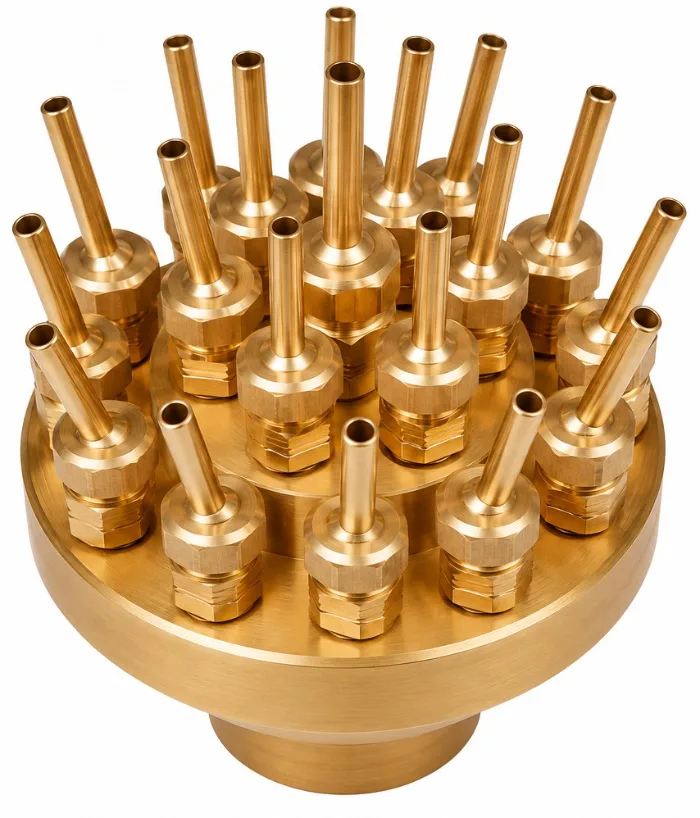

| Volcano Nozzles (JVN01 / MVN01 / JVN02 (+ -K)) | 1" jetted, 1" plain and 2" multi-jet (19 jets) models; bronze or chrome-plated. |

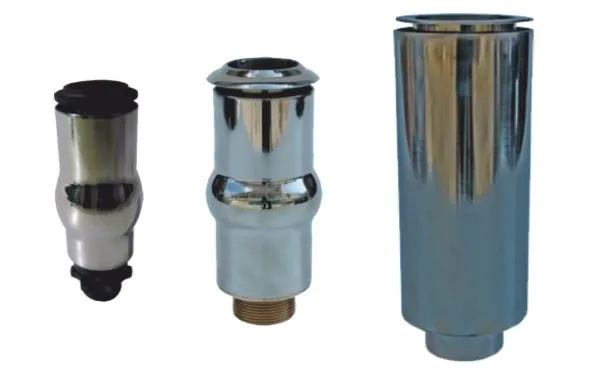

| Stainless Steel Foam Nozzles (PKN01 / PKN01-X / PKN01-Y / PKN02 / PKN02-X / PKN03) | 35-10E 1", 55-10E 1", 55-15E 1 1/2" and 75-20E 2" bodies; 35-10E and 55-15E with bronze float-ball or plastic internals, 55-10E bronze float-ball, 75-20E plastic. |
| Plastic Fountain Nozzles (PPN01–PPN07) | 1" 35-10E and 1/2" 20-10E foam nozzles, 1" and 1/2" jetted volcano, 1/2" umbrella (standard and short), 1/2" mini volcano. |
| Sphere Fountains (FSK01–FSK04) | Monumental sphere fountains at 1,500 mm (106 arms), 2,000 mm (106 arms), 2,500 mm (150 arms) and 3,000 mm (186 arms) diameter. |
| Globe-Figure Fountains (DSK01–DSK05) | Globe-figure fountains in 690, 840, 1,300, 1,800 and 2,200 mm diameters. |
| Floating Fountain Systems (YSK01 / YSK02 / YSK03) | Supplied with 8 plastic light fittings in single-colour, RGB or full RGB. For ponds and lakes. |
| Chrome Water Bells (KSC001 / KSC002 / KSC003) | 1" connection; 30-10T (300 mm dia · 3.00 m³/h), 45-10T (450 mm dia · 4.00 m³/h) and 60-10T (600 mm dia · 5.00 m³/h) stainless bodies. |
| Stainless Steel Jumping Jet System (RGB) (JJS001) | Stainless-internals jumping jet system with RGB lighting and a 4 to 6 m throw depending on the project. |
TECHNICAL SPECIFICATIONS
| Nozzle types | Finger jet, cascade geyser, fan, inverted umbrella |
| Height control | Variable spray height (villa applications) |
| Custom fabrication | Machined to project drawings and dimensions |

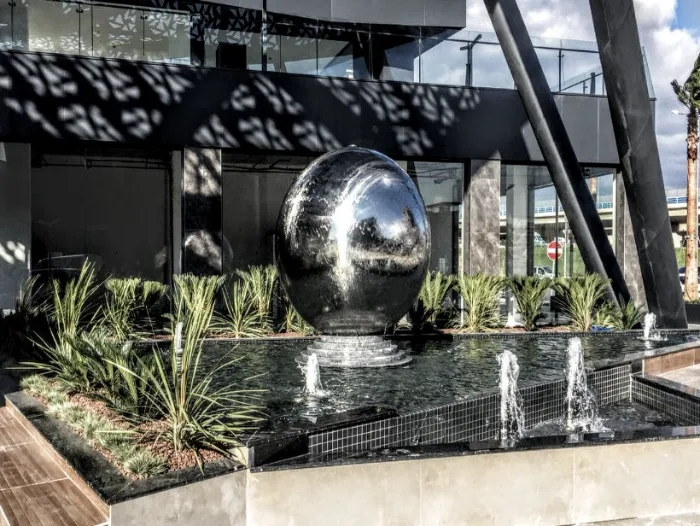

| Reference project | Girne city square stainless steel sphere fountain (Cometepool manufacture) |
| Body / finish | Bronze or chrome-plated (optional); stainless and plastic series also available |
| Finger jet thread sizes | 1/4" (self-valved only), 1/2", 3/4", 1", 1 1/2", 2"; plus 1" and 1 1/2" long-body versions |
| Finger jet joint and valve | Wide-angle swivel joint; self-valved models in 1/4", 1/2", 3/4", 1" |
| Cascade geyser models | 50T (1"), 70T (1 1/2"), 90T (2"), 110T (2 1/2"), 130T (3") — articulated joint, adjustable spray angle |
| Cascade geyser dimensions (A/B/C mm · weight) | 50T: 136/51/118 · 240 g | 70T: 182/75/153 · 510 g | 90T: 213/80/187 · 820 g | 110T: 230/96/200 · 1,550 g | 130T: 340/135/295 · 5,470 g |
| Stainless foam nozzle flow rates | 35-10E: 3.10-9.60 m³/h · 55-15E: 6-23 m³/h · 75-20E: 14-44 m³/h (at water levels of 0.25-4.00 m) |
| Stainless foam nozzle internals | 35-10E and 55-15E bronze float-ball or plastic internals, 55-10E bronze float-ball, 75-20E plastic; 1", 1 1/2" and 2" connections |
| Volcano nozzles | 1" jetted, 1" plain and 2" multi-jet (19 jets); bronze or chrome-plated |
| Fan, hand-type and mist nozzles | 1" and 2" fan nozzles; 1" hand-type finger jet; 1" mist nozzle — bronze or chrome-plated |
| Foam, rotating and inverted umbrella | 1" and 2" concentric-tube foam nozzles; 1" rotating nozzle; 1" and 2" inverted umbrella nozzles |
| Chrome water bells | 30-10T: 300 mm dia · 3.00 m³/h · 1,160 g | 45-10T: 450 mm dia · 4.00 m³/h · 1,410 g | 60-10T: 600 mm dia · 5.00 m³/h · 1,560 g — 1" connection, stainless body |
| Sphere fountains | 1,500 mm dia (106 arms), 2,000 mm dia (106 arms), 2,500 mm dia (150 arms), 3,000 mm dia (186 arms) |
| Globe-figure fountains | 690, 840, 1,300, 1,800 and 2,200 mm diameter |
| Floating fountain systems | Supplied with 8 plastic light fittings; single-colour, RGB and full RGB options |
| Jumping jet | Stainless internals; 4-6 m throw depending on the project; RGB LED |
| Plastic series | 1" 35-10E and 1/2" 20-10E foam nozzles, 1" and 1/2" jetted volcano, 1/2" umbrella (2 models), 1/2" mini volcano |
| Hydraulic design note | Allow for elbow losses when sizing the nozzle circuit. |
| Compatibility with fountain-inlet lighting | Stainless round fittings with 1/2" and 1.5" fountain inlets (IP68); on stainless square-type fittings the nozzle aperture is set to the selected nozzle |
| Manufacturing and origin | In-house on an ISO 9001 certified line — Bornova, Izmir / Türkiye |
APPLICATION AREAS
- City squares and municipal ornamental pools
- Hotel and landscape water features
- Dry-plaza installations — ground-level jet groups combined with the stainless round fittings that carry a 1/2" or 1.5" fountain inlet, so lighting and nozzle share one opening.
- Hotel forecourts and lobby pools — chrome water bells and inverted umbrella nozzles form a closed, symmetrical film that keeps the feature visually calm near a reception area.
- Villa garden pools — variable-height jets; 1/2" and 3/4" self-valved finger jets let each nozzle be trimmed individually, balancing a small feature without extra valve work in the plant room.
- Ponds and lakes — lit floating fountain systems sit on an open water surface with no fixed nozzle pedestal or concrete substructure required.
- Shopping centres and landscape schemes — mixed-effect basins combining volcano, foam and fan nozzles, where the 2" 19-jet volcano gives a single strong focal point.
- Hot-climate outdoor areas — 1" mist nozzles positioned around seating and shade structures to provide evaporative cooling.
FREQUENTLY ASKED QUESTIONS
Which nozzle type should I choose for an ornamental fountain?+
It depends on the water picture the design calls for. Finger jet nozzles create a group of slim, defined streams; cascade geysers form a full, foaming column; fan nozzles spread a flat sheet of water; inverted umbrella nozzles shape a smooth downward bell-like film. Send us the project drawing and we will match nozzle types to each position in the layout.
Can fountain nozzles be manufactured to custom dimensions?+
Yes. Custom fabrication to project drawings and dimensions is Cometepool's core competency — nozzle groups, manifolds, connection details and finishes are produced to the measurements you specify. Sphere fountains are built from 1,500 mm up to 3,000 mm diameter and globe-figure fountains from 690 mm up to 2,200 mm; jumping jet systems are planned around a 4-6 m throw depending on the project. The stainless steel sphere fountain in Girne's city square is one of our manufactured references. You can review the range in our catalog at cometepool.com/catalogs/catalog-en.pdf.
Do you supply floating fountain units for ponds and lakes?+
Yes. We manufacture floating fountain units for pond and lake installations, and for villa projects we offer variable spray height control. As a manufacturer of more than 200 pool products, we can also quote the nozzle groups together with the other items on your project list. Contact us at info@cometepool.com or +90 533 895 25 50 (also WhatsApp) with your site details.
Should I specify bronze or chrome-plated bodies?+
Both are the same machined body; the difference is the surface. Bronze reads as a warm yellow metal and develops a natural patina over time, which suits stone, timber and classical architecture. The chrome-plated option stays bright and neutral and is usually chosen for glass-and-steel schemes and stainless-lined basins. Our finger jet, geyser, volcano, fan, foam and umbrella series are all produced in either finish.
How is the right nozzle size determined?+
Start with the thread size: finger jets run 1/4" to 2", cascade geysers 1" to 3" and chrome water bells 1". Then match the target throw height against the available pump flow and supply-line diameter. Our stainless foam nozzles have published working ranges — 35-10E at 3.10-9.60 m³/h, 55-15E at 6-23 m³/h and 75-20E at 14-44 m³/h, across water levels of 0.25 to 4.00 m. Remember to allow for elbow losses when sizing the circuit.
Can nozzles be retrofitted to an existing fountain?+
In most cases yes. Finger jets and cascade geysers use standard threaded connections, so they can be fitted straight onto an existing line that has an outlet of the right diameter. Floating fountain systems need no fixed substructure at all — they simply sit on the water. The one thing to verify is whether the installed pump delivers enough flow for the nozzle type you want; send us the pump nameplate and the pipe diameter and we will check it.
Can the spray angle be adjusted after installation?+
Yes. Our finger jets are machined with a wide-angle swivel joint and cascade geysers have an articulated joint with an adjustable spray angle. That lets the installer correct for wind drift or splash onto the coping once the feature is running. On the self-valved finger jet models the flow of each individual nozzle can be trimmed as well.
What maintenance do fountain nozzles need?+
For bronze and chrome-plated nozzles maintenance is mostly cleaning: at the end of the season remove scale and biofilm from the orifice with a soft brush and a non-abrasive cleaner. Avoid wire brushes and abrasive powders, which will scratch chrome plating. If the throw drops, check the pre-filter before you suspect the nozzle itself. On articulated bodies, confirm once a year that the joint still moves freely.
Can you supply the fountain lighting as well?+
Yes. Our range includes IP68 stainless round fittings with 1/2" and 1.5" fountain inlets, and on the stainless square-type ornamental fittings the nozzle aperture is machined to suit the nozzle you select. Floating fountain systems already ship with 8 plastic light fittings in single-colour, RGB or full RGB. Specifying both from one manufacturer removes the usual clash between the nozzle opening and the luminaire.
Send your project drawing and nozzle list to info@cometepool.com or via WhatsApp at +90 533 895 25 50 and we will prepare your technical quotation.
